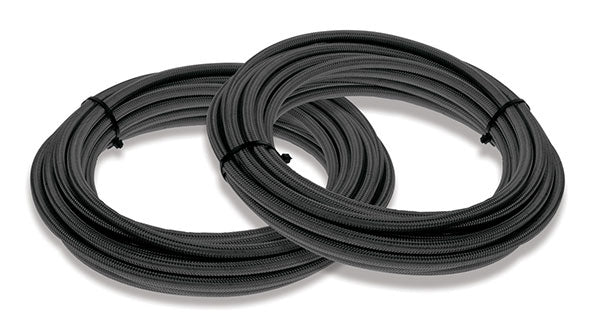

Raceworks 240 Series Black Nylon Braided PTFE E85 Hose

Raceworks 240 Series Black Nylon Braided PTFE E85 Hose

by Raceworks
$27.95 - $629.95
$27.95
$27.95
$27.95 - $629.95
$27.95
SKU RWH-240-03-1M

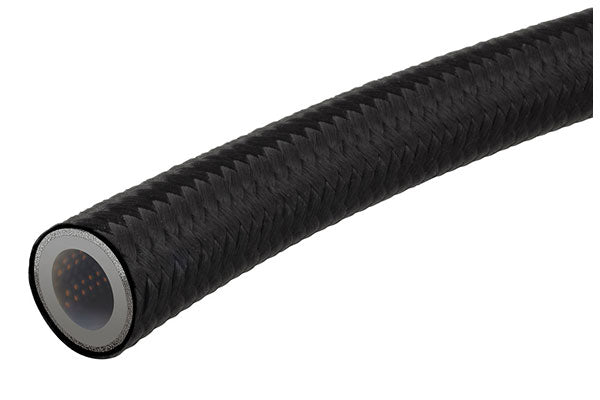

Raceworks 240 Series Black Nylon Braided PTFE hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE tube has a black lightweight outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 220 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.

Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe

Specifications

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-3 3000psi 10000psi 1/8″ 3.1mm 1/4″ 6.4mm TBA TBA TBA
AN-4 3000psi 10000psi 3/16″ 4.7mm 5/16″ 7.9mm 85g 1.06″ 27mm
AN-6 2500psi 9000psi 5/16″ 7.9mm 15/32″ 11.8mm 113g 1.57″ 40mm
AN-8 2000psi 7000psi 13/32″ 10.5mm 17/32″ 13.3mm 142g 1.89″ 48mm
AN-10 1500psi 5000psi 17/32″ 13.4mm 41/64″ 16.2mm 255g 3.15″ 80mm
AN-12 1200psi 4500psi 41/64″ 16.2mm 49/64″ 19.3mm 284g 4.72″ 120mm

Products

AN Length (metres) Part Number
-3 1M RWH-240-03-1M
-3 5M RWH-240-03-5M
-3 10M RWH-240-03-10M
-3 30M RWH-240-03-30M
-4 1M RWH-240-04-1M
-4 5M RWH-240-04-5M
-4 10M RWH-240-04-10M
-4 30M RWH-240-04-30M
-6 1M RWH-240-06-1M
-6 5M RWH-240-06-5M
-6 10M RWH-240-06-10M
-6 30M RWH-240-06-30M
-8 1M RWH-240-08-1M
-8 5M RWH-240-08-5M
-8 10M RWH-240-08-10M
-8 30M RWH-240-08-30M
-10 1M RWH-240-10-1M
-10 5M RWH-240-10-5M
-10 10M RWH-240-10-10M
-10 30M RWH-240-10-30M
-12 1M RWH-240-12-1M
-12 5M RWH-240-12-5M
-12 10M RWH-240-12-10M
-12 30M RWH-240-12-30M
