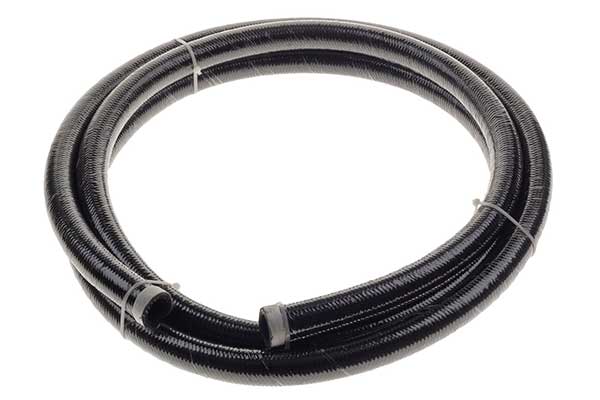

Raceworks 140 Series Black Stainless Braid over Rubber Hose

Raceworks 140 Series Black Stainless Braid over Rubber Hose

by Raceworks
$35.95 - $659.95
$35.95
$35.95 - $659.95
$35.95
SKU RWH-140-04-1M

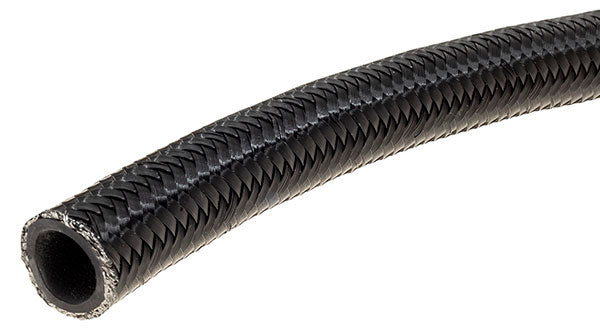

Raceworks 140 Series Cutter Black Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a black double outer braid. Suitable for use with regular fuel, E85, E10, Methanol, Oils, Synthetic Lubricants and Coolant. All Raceworks products come with a 2 year warranty.

Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe

Specifications

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-4 1000psi 6000psi 7/32″ 5.5mm 7/16″ 11.1mm TBA TBA TBA
AN-6 1000psi 6000psi 11/32″ 8.7mm 9/16″ 13.8mm TBA TBA TBA
AN-8 1000psi 5000psi 7/16″ 11.1mm 5/8″ 15.7mm TBA TBA TBA
AN-10 1000psi 5000psi 9/16″ 14.2mm 13/16″ 20.8mm TBA TBA TBA
AN-12 1000psi 3750psi 11/16″ 17.4mm 15/16″ 23.9mm TBA TBA TBA
AN-16 750psi 2500psi 7/8″ 22.2mm 13/64″ 30.5mm TBA TBA TBA
AN-20 500psi 2000psi 1-1/8″ 28.5mm 1-13/32″ 35.8mm TBA TBA TBA

Products

AN Length (metres) Part Number
-4 1M RWH-140-04-1M
-4 5M RWH-140-04-5M
-4 10M RWH-140-04-10M
-4 30M RWH-140-04-30M
-6 1M RWH-140-06-1M
-6 5M RWH-140-06-5M
-6 10M RWH-140-06-10M
-6 30M RWH-140-06-30M
-8 1M RWH-140-08-1M
-8 5M RWH-140-08-5M
-8 10M RWH-140-08-10M
-8 30M RWH-140-08-30M
-10 1M RWH-140-10-1M
-10 5M RWH-140-10-5M
-10 10M RWH-140-10-10M
-10 30M RWH-140-10-30M
-12 1M RWH-140-12-1M
-12 5M RWH-140-12-5M
-12 10M RWH-140-12-10M
-12 30M RWH-140-12-30M
-16 1M RWH-140-16-1M
-16 5M RWH-140-16-5M
-16 10M RWH-140-16-10M
-16 30M RWH-140-16-30M
-20 1M RWH-140-20-1M
-20 5M RWH-140-20-5M
-20 10M RWH-140-20-10M
-20 20M RWH-140-20-20M
