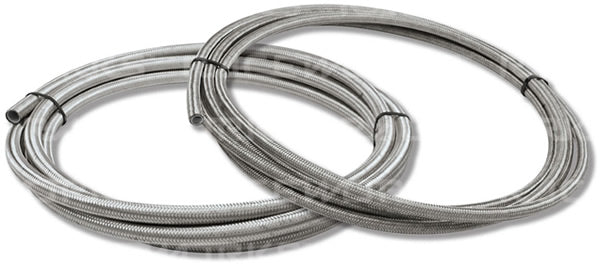

Raceworks 200 Series Stainless Braid over PTFE Hose

Raceworks 200 Series Stainless Braid over PTFE Hose

by Raceworks
$18.95 - $479.95
$18.95
$18.95 - $479.95
$18.95
SKU RWH-200-03-1M

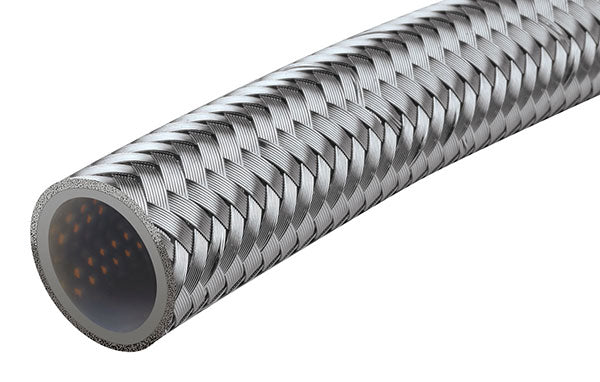

Raceworks 200 Series PTFE Braided Hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE tube is covered by a stainless steel outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 200 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.

Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe

Specifications

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-3 3000psi 10000psi 1/8″ 3.1mm 1/4″ 6.4mm 66g 0.95″ 24mm
AN-4 3000psi 10000psi 3/16″ 4.7mm 5/16″ 7.9mm 85g 1.00″ 25mm
AN-6 2500psi 9000psi 5/16″ 7.9mm 15/32″ 11.8mm 139g 1.30″ 33mm
AN-8 2000psi 7000psi 13/32″ 10.5mm 17/32″ 13.3mm 176g 1.69″ 43mm
AN-10 1500psi 5000psi 17/32″ 13.4mm 41/64″ 16.2mm 222g 2.09″ 53mm
AN-12 1200psi 4500psi 41/64″ 16.2mm 49/64″ 19.3mm 246g 4.53″ 115mm

Products

AN Length (metres) Part Number
-3 1M RWH-200-03-1M
-3 5M RWH-200-03-5M
-3 10M RWH-200-03-10M
-3 30M RWH-200-03-30M
-4 1M RWH-200-04-1M
-4 5M RWH-200-04-5M
-4 10M RWH-200-04-10M
-4 30M RWH-200-04-30M
-6 1M RWH-200-06-1M
-6 5M RWH-200-06-5M
-6 10M RWH-200-06-10M
-6 30M RWH-200-06-30M
-8 1M RWH-200-08-1M
-8 5M RWH-200-08-5M
-8 10M RWH-200-08-08M
-8 30M RWH-200-08-30M
-10 1M RWH-200-10-1M
-10 5M RWH-200-10-5M
-10 10M RWH-200-10-10M
-10 30M RWH-200-10-30M
-12 1M RWH-200-12-1M
-12 5M RWH-200-12-5M
-12 10M RWH-200-12-10M
-12 30M RWH-200-12-30M
