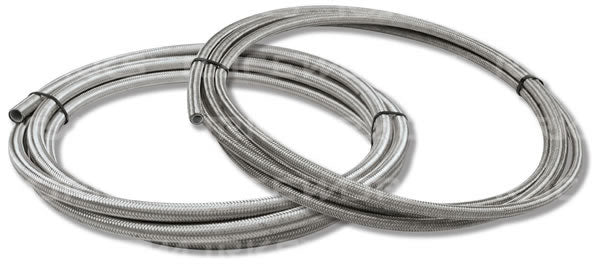

Raceworks 100 Series Stainless Braid over Rubber Hose

Raceworks 100 Series Stainless Braid over Rubber Hose

by Raceworks
$24.95 - $2,289.95
$24.95
$24.95 - $2,289.95
$24.95
SKU RWH-100-04-1M

Raceworks 100 Series Stainless Steel Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a stainless steel double outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.

Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe

Specifications

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-4 1000psi 6000psi  7/32” 5.5mm 7/16″ 11.1mm 151g 1.00″ 25mm
AN-6 1000psi 6000psi 11/32”  8.7mm 9/16″ 13.8mm 196g 1.30″ 33mm
AN-8 1000psi 5000psi 7/16” 11.1mm 5/8” 15.7mm 253g 1.69″ 43mm
AN-10 1000psi 5000psi 9/16” 14.2mm 13/16″ 20.8mm 365g 2.09″ 53mm
AN-12 1000psi 3750psi 11/16” 17.4mm 15/16″ 23.9mm 471g 2.36″ 60mm
AN-16 750psi 2500psi 7/8″ 22.2mm 13/64″ 30.5mm 567g 4.13″ 105mm
AN-20 500psi 2000psi 1-1/8″ 28.5mm 1-13/32″ 35.8mm 850g 6.30″ 160mm

Products

AN Length (metres) Part Number
-4 1M RWH-100-04-1M
-4 5M RWH-100-04-5M
-4 10M RWH-100-04-10M
-4 30M RWH-100-04-30M
-6 1M RWH-100-06-1M
-6 5M RWH-100-06-5M
-6 10M RWH-100-06-10M
-6 30M RWH-100-06-30M
-8 1M RWH-100-08-1M
-8 5M RWH-100-08-5M
-8 10M RWH-100-08-10M
-8 30M RWH-100-08-30M
-10 1M RWH-100-10-1M
-10 5M RWH-100-10-5M
-10 10M RWH-100-10-10M
-10 30M RWH-100-10-30M
-12 1M RWH-100-12-1M
-12 5M RWH-100-12-5M
-12 10M RWH-100-12-10M
-12 30M RWH-100-12-30M
-16 1M RWH-100-16-1M
-16 5M RWH-100-16-5M
-16 10M RWH-100-16-10M
-16 30M RWH-100-16-30M
-20 1M RWH-100-20-1M
-20 5M RWH-100-20-5M
-20 10M RWH-100-20-10M
-20 20M RWH-100-20-20M
